Products / Insulated Tactical Jackets
An insulated tactical jacket is defined by its fill: a layer of lofted material carried inside the garment to hold the warmth the wearer generates. That fill is held in place by quilting, baffles or channels, and how it is held decides almost everything about the jacket — where warmth sits on the body, how the garment behaves after being packed, whether the fill migrates away from the chest, and how much the arms are locked forward by bulk. So the specification work is not choosing an insulation; it is deciding how that insulation is carried, where it is concentrated, and where it is deliberately reduced so the wearer keeps the movement their role requires.
Gallery
Design purpose
Build an insulated jacket on the buyer's pattern in which the fill is carried, mapped and fixed in a way that delivers standing warmth without adding bulk where the wearer needs shoulder rotation, arm reach and hip flexion.
Applications
Interactive map
Insulated Tactical Jacket: select a marker to see what can be specified at that part of the garment — all 10 mapped areas are also listed in full below the map, so nothing is hidden behind an interaction.
Customization by garment part
Select a marker to see the customization options available at that part of the garment. Every option below is a manufacturing decision you control.
Materials
4 material options for Insulated Tactical Jacket, specified per garment area — a single fabric cannot serve heat management and abrasion resistance at the same time.
Fill carrier construction
A sewn-through quilt is lighter and flatter but creates cold lines along every stitch row. Baffles hold more loft and reduce that effect, at a cost in weight and complexity. The choice follows how cold the programme is, not the fill alone.
Fill material
Synthetic fills hold more of their function when damp, which is why they are usually chosen for wet cold and sustained field use. Down packs smaller and warms more per gram but needs the moisture path to be right.
Face and lining
The face decides abrasion life and how the jacket behaves under a shell. Under a shell, the face can be light; worn as an outer garment, it has to take abrasion and light weather.
Bulk control
Bulk at the inner arms and shoulders is what locks the arms forward and makes a jacket feel restrictive. Reducing fill there costs very little warmth and buys back most of the movement.
Construction
How each of the 8 parts of Insulated Tactical Jacket is assembled, and why that choice was made.
Fill mapping by zone
Fill weight and construction are specified per body zone — more at chest and back, less at inner arms and shoulders, and handled differently where the wearer compresses the garment against equipment.
Baffle or channel geometry
Channel width, wall height and stitch row spacing are set in the tech pack, because they decide where cold lines fall, how the fill stays distributed and whether the garment recovers its loft after packing.
Compression and recovery
The construction is developed so the jacket regains its loft after being packed and stored. A jacket that insulates when new and stops doing so after a season of compressed storage has a construction problem, not a fill problem.

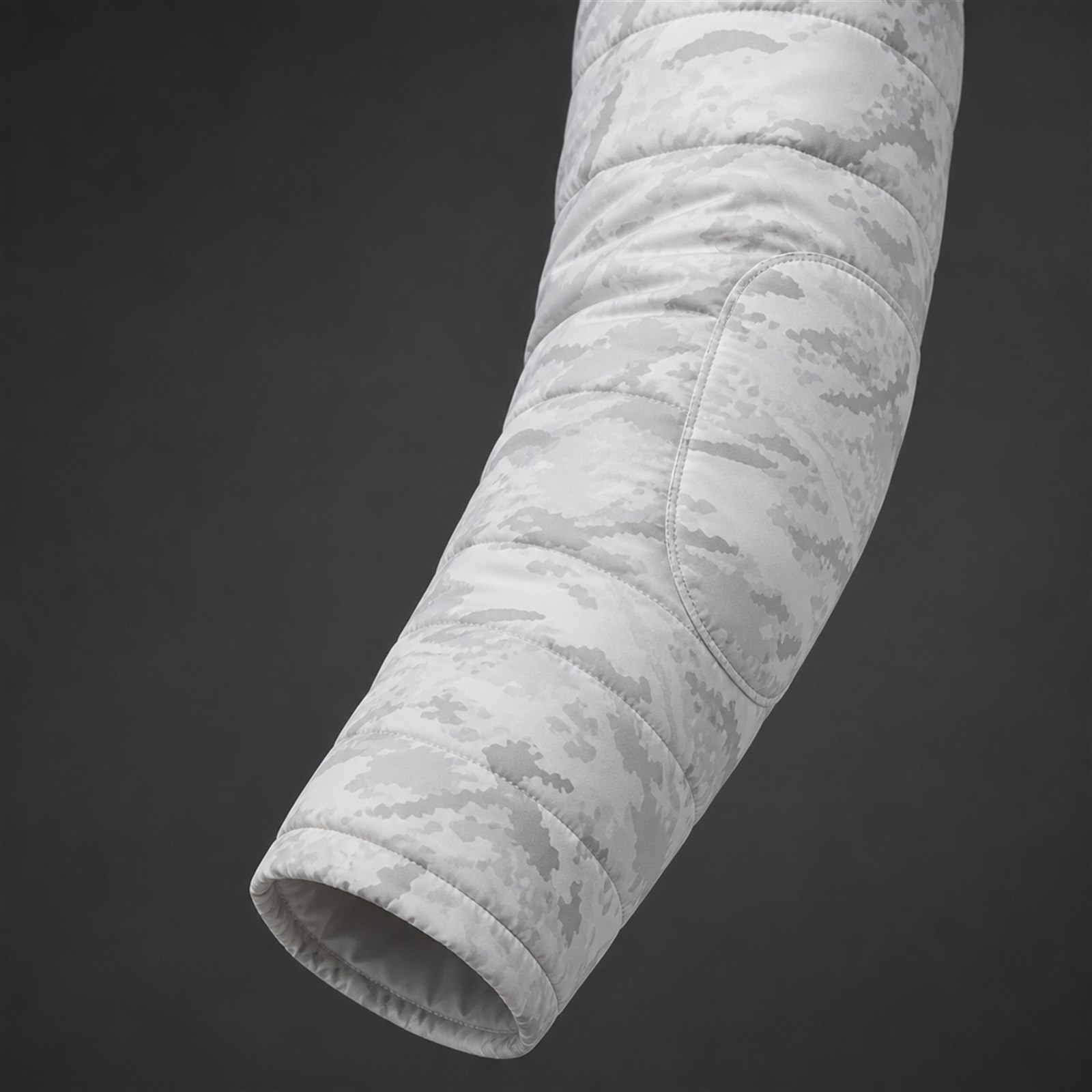

Shoulder and arm interface
Fill is reduced or redistributed at the inner arms and shoulders and articulation is added at the elbow, so the wearer keeps shoulder rotation and reach with the jacket on.

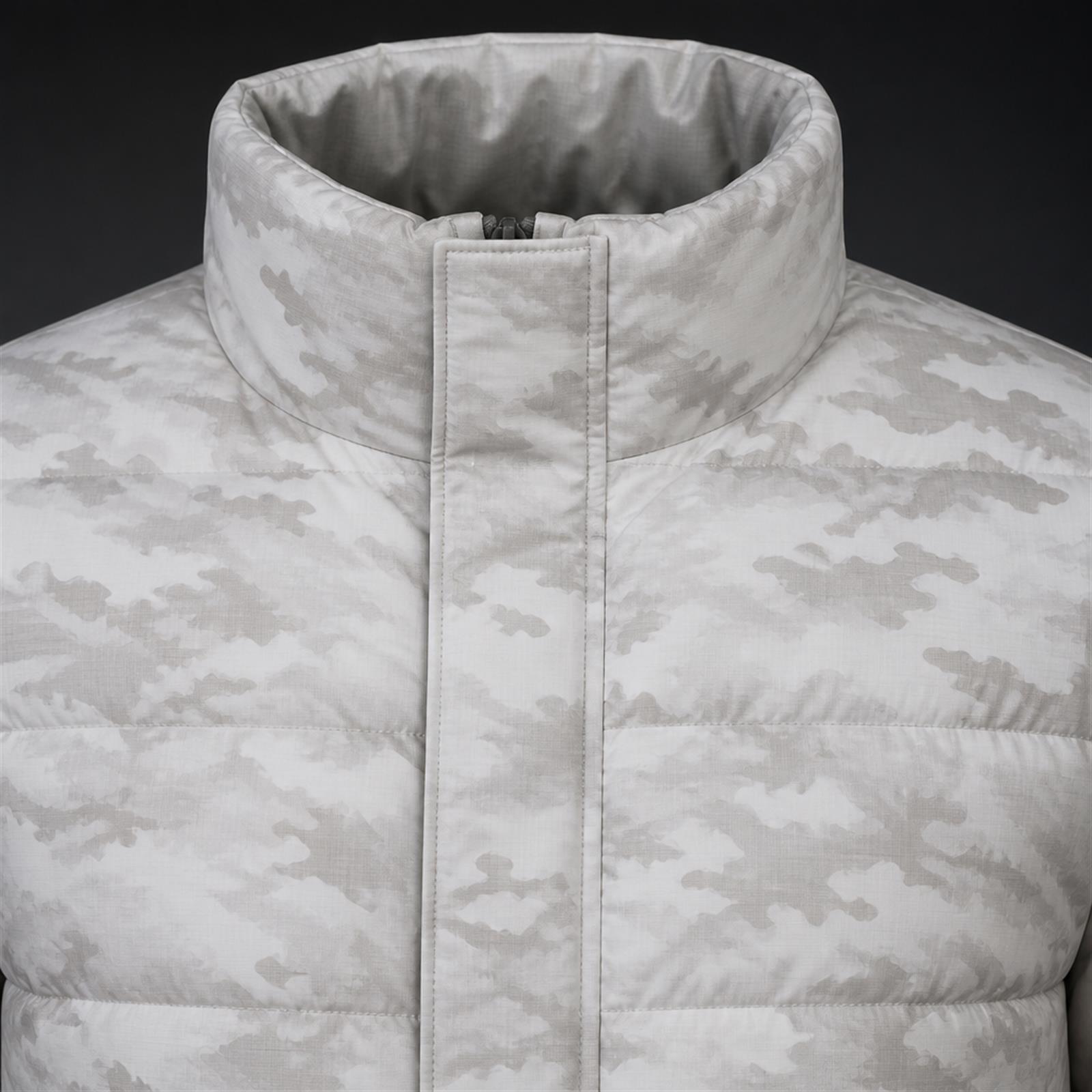

Front closure
A two-way zip with an internal storm flap, chin guard and zip garage is specified as one assembly, so the closure can be opened from the bottom when the wearer is seated or wearing equipment.
Cuff and hem
Adjustable cuffs and a hem drawcord are specified so the jacket can be sealed against draughts when static and vented when the wearer is moving, with hardware that remains operable in the cold.
Compatibility under a shell
Where the jacket is worn as the insulation layer, its volume is developed against the shell so the two do not compress each other at the shoulders, and so the shell can be closed over it without locking the arms.
Labelling and care
Care labelling is specified against the laundry cycle the programme uses, because fill behaviour, baffle integrity and face finish are all affected by how the garment is washed and dried.
Features
The 6 functional features of Insulated Tactical Jacket each exist to solve a specific problem in use, and where a feature is a trade-off rather than a pure gain that is stated.
How the fill is held — quilted, baffled or channelled — decides where warmth sits and whether it stays there after packing. That construction is agreed in writing rather than left to the line.
Fill is concentrated at chest and back and reduced at inner arms and shoulders, so the jacket delivers standing warmth without locking the wearer's arms forward.
Baffle geometry and fill type are chosen so the jacket regains its loft after compressed storage, which is what keeps a jacket functional into a second season.
Where the programme involves wet cold or sustained field use, fill types that hold more of their function when damp are selected, and the moisture path through the system is treated as part of the specification.
The jacket is developed against the layers on either side, so the shell can be closed over it and the mid layer beneath it is not compressed.
Closure, cuffs and hem are specified so the jacket seals when the wearer is static and vents when they are moving, with hardware operable in the cold and with gloves.
Customization
12 customization lines for Insulated Tactical Jacket: branding, colour, camouflage and packaging are all part of the specification, and every item is confirmed on the pre-production sample.
Fill carrier
Fill material
Fill mapping
Face fabric
Lining
Front closure
Collar and hood
Sleeve and bulk control
Ventilation

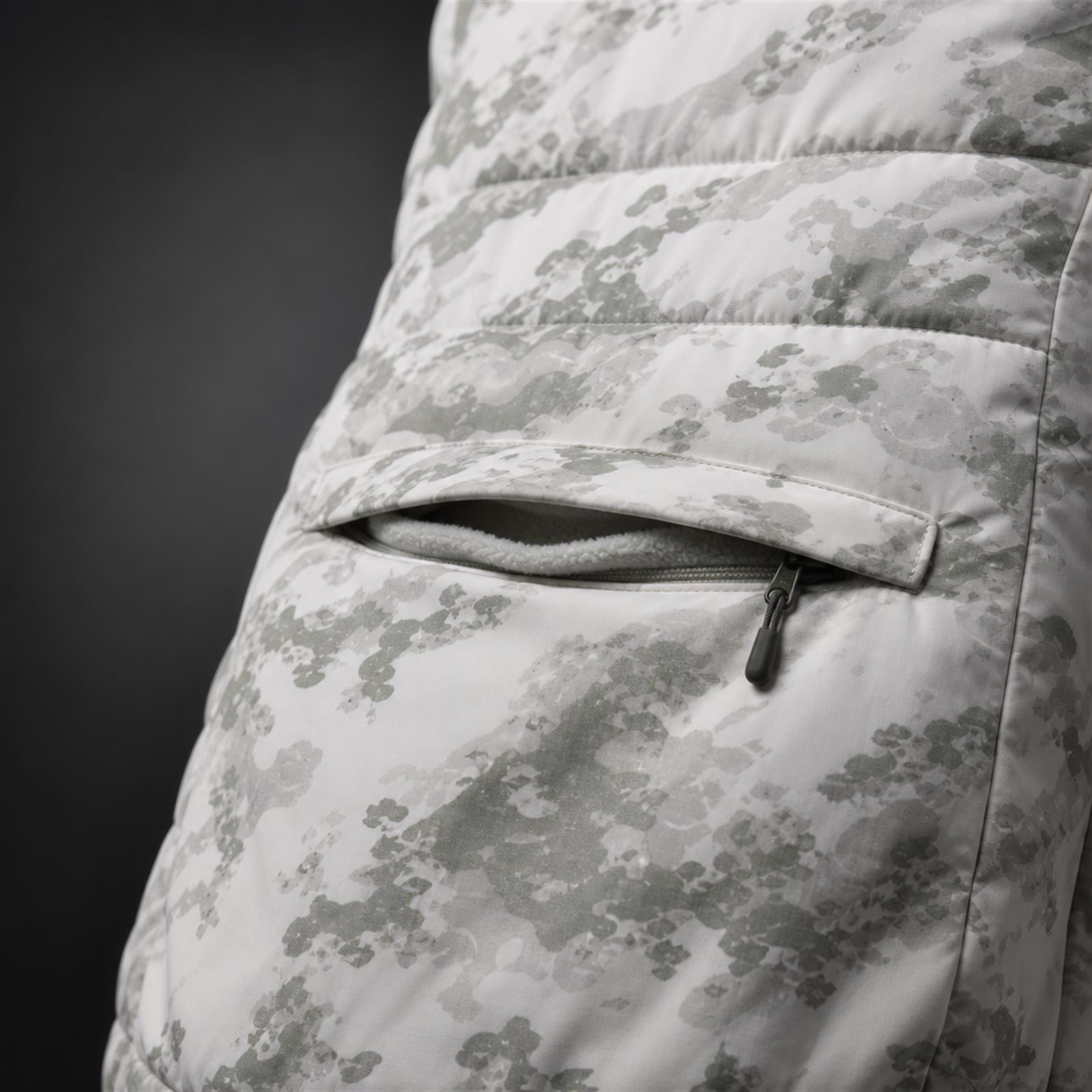

Pockets
Colour and camouflage
Labelling and packing
Colour
Camouflage
Sizing
Insulated jacket sizing is developed with the fill volume already in the garment, because an insulated jacket does not size like an unlined shell of the same nominal size. Chest, shoulder width, back length and sleeve length are set against the layers the wearer puts underneath, and arm length is developed with the bulk of the jacket itself taken into account, since two or three insulated layers together reduce effective reach. A size set is produced and fitted as a stack on a wearer before bulk.
Branding
Your pattern, your fill and carrier specification, your zone map, your hardware and your packaging. Labels, trims and cartons can be left blank, so the range ships as your own product with the specification held on file against every repeat order.
Logistics
Sample development
Development of Insulated Tactical Jacket runs in 7 stages, each risk removed before the next step commits cost.
Specification review
We agree the fill material and weight, the carrier construction, the zone map, face and lining, closure assembly and the layers the jacket must sit between, in writing before anything is cut.
Fill and carrier selection
Fill options and carrier constructions are presented with the warmth, packability, damp behaviour and cold-line trade-offs each one buys and gives up, so the buyer chooses deliberately.
Pattern development
The pattern is developed on the buyer's size range with fill volume, articulation and reduced-fill zones allowed for from the start, rather than adding bulk after a fit failure.
Proto sample
A first sample proves fit over the intended base and mid layers, tests shoulder rotation and reach, and checks where the stitch rows or baffle lines fall across the chest and arms.
Fit sample
A revised sample is produced with the agreed corrections and assessed on a wearer under a shell, since the interaction between the two is what decides whether the arms stay free.
Size set
A set across the size range is produced so grading of chest, shoulder, sleeve and back length is confirmed with the fill volume present, not only at the base size.
Sealed sample
The approved sample is sealed and retained as the reference for inline and final inspection, including the fill zone map and carrier construction.
Bulk production
7 stages of bulk production for Insulated Tactical Jacket — where the approved specification is either held or lost.
Material receipt and inspection
Face fabric, fill lot and fill weight, lining, zip and trims are checked against the sealed sample before cutting, and colour is verified against the approved standard in daylight.
Cutting and panel marking
Panels are cut to the approved pattern with fill zone boundaries marked, so the mapping decided at sample stage survives into production rather than being averaged out.
Fill and carrier assembly
Fill is laid to the approved zone plan and quilted, baffled or bonded to the specified geometry, with channel width and stitch spacing checked against the tech pack.
Closure and opening assembly
Two-way zip, internal storm flap, chin guard, garage, vents and cuffs are assembled and function-checked, including operation with gloves where required.
Inline inspection
Garments are measured against approved tolerances at defined points through the run, so a drift in fill distribution or body length is caught while it can still be corrected.
Finishing and labelling
Care labels, size marking and issue identification are applied to agreed positions, and loose threads, zip function, baffle appearance and loft recovery are finished to the sealed sample.
Final inspection and packing
Final inspection follows the approved specification and the AQL agreed with the buyer, and approved goods are packed and marked to the buyer's carton instructions.
Quality control
The 7 checks applied to Insulated Tactical Jacket, each measured against an agreed standard rather than against opinion.
Incoming material check
Face fabric, fill lot and fill weight, lining, zip and trims are recorded against the specification, and material lots are retained for reference and repeat matching.
Colour verification
Production colour is compared with the approved standard and the sealed sample under agreed lighting, and shade variation across rolls is recorded before cutting.
Fill mapping and distribution check
Sampled garments are weighed and sectioned to confirm fill is present in the specified zones at the specified amounts, since this is the specification most easily lost in production.
Measurement check
Chest, shoulder, sleeve length, back length, collar and hem are measured against approved tolerances during the run, including graded sizes rather than the base size alone.
Loft recovery check
Sampled garments are compressed, held and then allowed to recover, and the recovered loft is compared with the sealed sample, because a jacket that loses loft permanently has stopped doing its job.
Closure and function testing
Two-way zips, storm flaps, vents, cuffs and hem adjusters are operated repeatedly on sampled garments to confirm they work in the cold and can be used with gloves.
Final inspection and records
Final inspection results, inspection records and retained samples stay with the order, so a repeat order is produced against evidence rather than against memory.
Specifications
19 specification rows for Insulated Tactical Jacket: only confirmed items are listed, so a row that depends on your programme is omitted rather than filled with an estimate.
| Product type | Insulated tactical jacket defined by fill carrier construction |
|---|---|
| Layer position | Insulation layer in a base, mid, insulation and shell composition, or outer layer in dry cold |
| Fill carrier | Sewn-through quilt, baffled construction, stitched-through panel quilting or bonded channels, to specification |
| Fill material | Synthetic lofted fill, down or down blend, or a hybrid build, to specification |
| Fill mapping | Uniform or mapped by body zone, with reduced fill at inner arms and shoulders where movement is the priority |
| Face fabric | Ripstop nylon, poly-cotton, water-repellent woven face or abrasion-resistant face, to specification |
| Lining | Plain or soft lining, with soft contact at the collar and pockets where specified |
| Front closure | Two-way or single zip with internal storm flap, chin guard and garage, to specification |
| Collar and hood | Stand collar, high stand collar, fixed hood or detachable hood, to specification |
| Sleeve | Articulated elbow, reduced fill at inner arms or stretch side panels, to specification |
| Ventilation | Underarm vents, chest vents, two-way front opening, or none, placed clear of equipment |
| Cuff and hem | Adjustable cuffs and hem drawcord, with hardware operable in the cold |
| Pockets | Zipped hand, chest, sleeve or internal security pockets, or none, to specification |
| Size range | EU or US runs including extended sizes, cut to layer over the buyer's base and mid layers |
| Colour and camouflage | Solid colourways, panelled blocking or buyer artwork camouflage, matched to an approved standard |
| Labelling | Woven main label, printed care label, size and issue marking as required |
| Packing | Poly bag, individual carton, compressed packing and buyer-specific cartons |
FAQ
It depends on how cold the programme is and how much weight matters. A sewn-through quilt is lighter and flatter but puts a cold line along every stitch row, because the fill is pinched to nothing there. Baffled construction uses internal walls to keep the loft continuous, which reduces that effect at a cost in weight and complexity. We present both with what each buys and gives up, and record the choice, because it changes how the garment performs at the coldest end of its range.
No, and a single number would be misleading. How warm an insulated jacket feels depends on the fill, the carrier construction, what is worn underneath, wind, humidity, exposure time and how the wearer moves. What we can do is specify the build to the coldest condition your programme expects, map the fill to your activity pattern and document it. Any comfort claim should come from your own field trial with the actual jacket.
That is a construction question rather than a fill question, and it is why the channel geometry and wall height are written into the tech pack. Fill migrates when channels are too wide for the fill weight, when the stitching does not hold the loft in place, or when the garment is repeatedly compressed and not allowed to recover. We check distribution on sampled garments and compare recovered loft against the sealed sample.
By reducing fill where it costs movement rather than by loosening the fit. Bulk at the inner arms and shoulders is what restricts shoulder rotation, so fill is reduced or redistributed there, articulation is added at the elbow, and the whole jacket is fitted over the layers the wearer actually uses. We confirm it on a wearer while reaching and lifting, and again with the shell on top.
It depends on the environment and on the moisture path. Synthetic fills hold more of their function when damp, which is why they are usually chosen for wet cold and sustained field use. Down packs smaller and warms more per gram, but it loses effectiveness if moisture reaches it, so the base layer and shell have to be working for the choice to pay off. Hybrid builds are possible where the shoulders need damp tolerance and the torso benefits from the lighter fill.
It can, on the cycle the garment is specified for. Care labelling is set against the laundry cycle your programme actually uses, because fill behaviour, baffle integrity and face finish are all affected by how the garment is washed and dried. Where your issue cycle uses industrial laundering, that is raised at the specification stage rather than discovered afterwards, and sampled garments are washed on that cycle and checked for shrinkage and loft recovery.
